Cardinal 760 PS / PA Portable Electronic Axle Scale is available in Central Carolina Scale Electronic Catalog

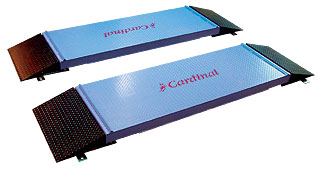

Cardinal's completely portable, two-module axle load scale gives you the performance you need, where you need it and when you need it. A real lightweight (only 400 lbs per aluminum platform) that handles the heavyweights (60,000 lbs capacity). Each scale comes complete with either steel or aluminum ramps, NEMA 4 junction box, environmentally-protected stainless steel load cells, and four access ramps.



760PS and 760PA Features

Two (2) each platforms with 2 ramps each (total of 4)

Weighbridge - 7' L x 30" W x 5 1/2" H

Stainless steel, environmentally-protected load cells

Overall dimensions with ramp - 10' L x 30" W x 5 1/2" H

Capacity - each platform - 30,000 lbs

Axle capacity - tandem platforms - 60,000 lbs

60,000 lb x 50 lb graduations (for portable installations) or 60,000 lb x 20 lb graduations (for permanent installations)

Brochure

Model	Nominal Capacity	Deck
760PS	30 ton	steel
760PA	30 ton	aluminum
