Intercomp SW I Racing Scales and Custom SW II Weighing Systems

Intercomp SW DELUXE Race Car Scales and Wheel Load Scales are available in the Central Carolina Scale Electronic Catalog

Brochure

Proper weight distribution is critical in obtaining a well-handling race car. To make sure your weight percentages are correct, you need the best computerized scale system, like the ones from Intercomp. Proper chassis setup separates the front runners from the followers. Intercomp scales provide the necessary data for any racer to become a chassis expert. If you're not using them for racing, these scales do an excellent job giving you individual wheel weights, percentages, and total weight. Intercomp SW Series Industrial Grade Scales compute center of gravity, weight as a percentage, individual platform and total weight. Self-contained indicator and printer available. Capacities from 4000 to 20,000 lbs.



INTERCOMP SW DELUXE Vehicle Scale System with optional printer Prints: Time and Date, Weights on each pad and percentages.

Controls: General: Zero, lb/kg, Test, Light, Print, Help, Set Time/Date, On, Off. Numeric: 13-key standard layout. Channel Selection: LF, RF, LR, RR, ALL. Weight and Percent: 8-key Weight and Percent selection. Storage Registers: Two-key register and I.D. Selection Indicators: lb/kg, Lo Bat.

High visibility liquid crystal display. Simultaneously reads out 4 lines of 20 characters each. Shows: (1) individual weight of each on each wheel; (2) percentage of total weight on each wheel; (3) LR and RF total weight plus percentage; RR and LF total weight plus percentage; (5) all wheel weights plus percentages at the same time; (6) plus all other possible combinations.

Top repeatability- consistently repeats same wheel weight. Jumbo built-in memory- holds up to 100 complete set-ups-including vehicle type and ID number! Permits "fine tuning" of vehicle weights and balance to get optimal weight distribution. Built-in self-diagnostics to check memory, display, keypad, weighing channels, power supply and weigh pads. Calibration- allows on-site user calibration. Shows weights in pounds or kilograms. Push button zero.

Power: 120-volt AC external 12-volt AC/DC and internal, C-size nickel cadmium rechargeable batteries. Automatic turn-off to extend battery life. Low battery indicator- tells user when batteries need recharging. Convenient size pads: 15" x 15"x4" each to accept a wide range of wheel sizes. Push Button night light. Rugged, protective water-proof carrying case for control box. Each system consists of 4 weigh pads, cables, control box (with case), battery recharger and instruction manual.

PART No. -- CAPACITY	Systems	Ship Wt:
100155 6000 lb x 1 lb	System with indicator case	155 lbs
100156 8800 lb x 1 lb	System with indicator case	155 lbs

OPTIONS AVAILABLE
100330	Ramps (set of 4)
100546	220V Pwr
100056	Complete Carrying CASE for Indicator & Platforms
100090	P-DP Printer

Return to top

INTERCOMP SW-20K Vehicle Scale System Intercomp's new SW-20K Scale is the industry's highest capacity, portable corner weight scale system. The SW-20K is a portable scale system that is ideal for determining center of gravity, validating design weights, measuring down force, and certifying equipment, trailers, tractors, coaches, and other large wheeled vehicles. This system has a total capacity of 20,000 lbs / 10,000 kg and eliminates the need to guess corner weights and percentages. Each scale pad has a capacity of 5,000 lbs/2500 kg, is 15" x 15" x 4"H / 381 x 381 x 100 mm in size, and is machined from Billet Aluminum. A RS232 Serial Output port is included for data logging intovarious software packages including Intercomp's Optional Weight Management Software. Just as with all other Intercomp quality scale systems, this system offers certified calibration to 0.1%, military grade cables and connectors, standard 9 Volt operation, giant 1/2" display characters, billet scale pads for greater flatness, and a standard 2 year manufacturer warranty. PART No. CAPACITY PLATFORM 170151 20,000 lbs 15" x 15" x 4"   Return to top

INTERCOMP SW-I Vehicle Scale System

Controls: General: Zero, lb/kg, Print, On, Off. Numeric: 13-key standard layout. Channel Selection: LF, RF, LR, RR, ALL. Weight and Percent: 8-key Weight and Percent selection. Storage Registers: Two-key register and I.D. Selection Indicators: lb/kg, Lo Bat.

High visibility liquid crystal display. 2 line 16 character alphanumeric

Top repeatability- consistently repeats same wheel weight. Permits "fine tuning" of vehicle weights and balance to get optimal weight distribution. Built-in self-diagnostics to check memory, display, keypad, weighing channels, power supply and weigh pads. Calibration- allows on-site user calibration. Shows weights in pounds or kilograms. Push button zero.

Power: 120-volt AC external 12-volt AC/DC and internal, C-size nickel cadmium rechargeable or alkaline batteries. Automatic turn-off to extend battery life. Low battery indicator- tells user when batteries need recharging. Internal memory recalls data of last vehicle weighed when unit is turned on. Convenient size pads: 15" x 15"x4" each to accept a wide range of wheel sizes. Each system consists of 4 weigh pads, cables, control box (with case), battery recharger and instruction manual.

Return to top

INTERCOMP SW-II Race Car Scale System

Controls: General: Zero, lb/kg, On, Off. Numeric: 13-key standard layout. Channel Selection: LF, RF, LR, RR, ALL. Weight and Percent: 8-key Weight and Percent selection. Storage Registers: Two-key register and I.D. Selection Indicators: lb/kg, Lo Bat.

High visibility liquid crystal display. 1 line 8 numeric character

Top repeatability- consistently repeats same wheel weight. Permits "fine tuning" of vehicle weights and balance to get optimal weight distribution. Built-in self-diagnostics to check memory, display, keypad, weighing channels, power supply and weigh pads. Calibration- allows on-site user calibration. Shows weights in pounds or kilograms. Push button zero. Accurate to .1 of 1%

Power: 120-volt AC external 12-volt AC/DC and internal, C-size nickel cadmium rechargeable or alkaline batteries. Automatic turn-off to extend battery life. Low battery indicator- tells user when batteries need recharging. Internal memory recalls data of last vehicle weighed when unit is turned on. Convenient size pads: 15" x 15"x4" each to accept a wide range of wheel sizes. Each system consists of 4 weigh pads, cables, control box (with case), battery recharger and instruction manual.

Return to top

Options Available:

100330 SWI & SW Deluxe 15"x15" Ramp, set of 4
Cast aluminum ramp that attaches to four inch heavy duty SWI and SW Deluxe Scales. Detaches for storage and transport. Used for ascent,decent or both.

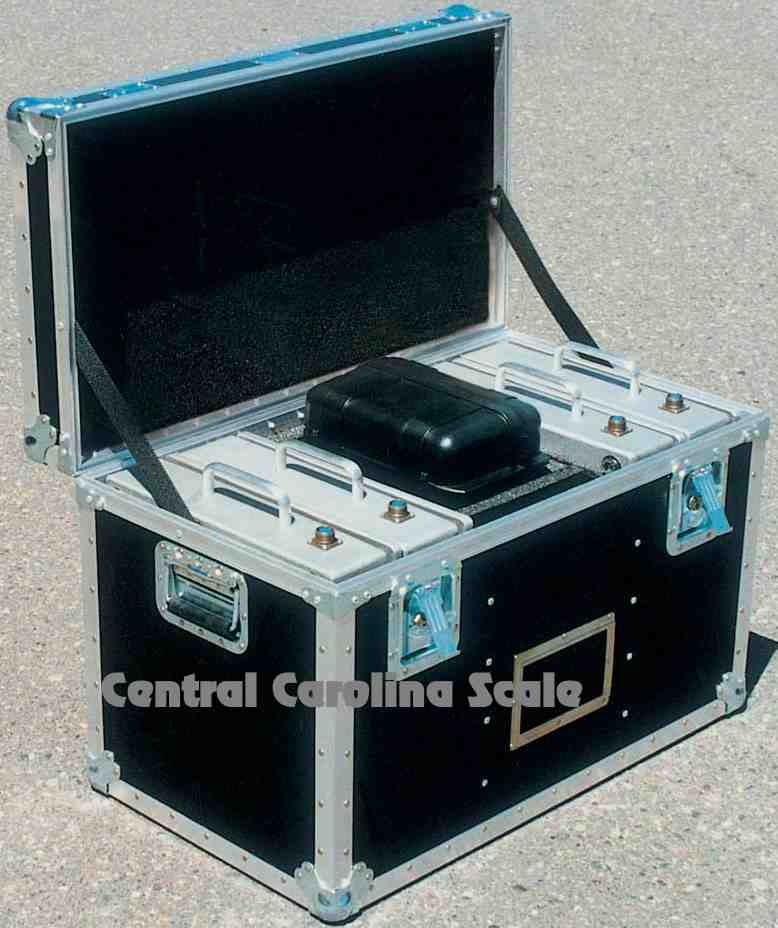

100056 Carrying Case -- Holds (4) Platforms and Scale Electronics

For more info or to request a quote please click above. To place an order call (919) 776-7737

Specifications subject to change without notice
